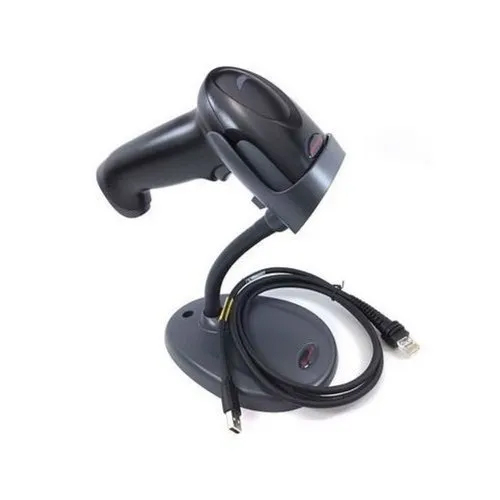

Honeywell Barcode Scanner

Scan Speed/Motion Tolerance Up to 610 CM/S
Brand Honeywell
Country of Origin Made in India
Weight 147 g (5.2 oz)
Input Voltage 4 VDC to 5.5 VDC
Operating Power 2.3 W (450mA @ 5 VDC)
Standby Power 0.45 W (90mA @ 5 VDC)
Host System Interfaces USB, Keyboard Wedge, RS232, IBM 46xx (RS485)
Operating Temperature 0 DegreeC to 50 DegreeC (32 DegreeF to 122 DegreeF)
Storage Temperature -40 DegreeC to 70 DegreeC (-40 DegreeF to 158 DegreeF)
Humidity 0% to 95% relative humidity, non-condensing
Drop Designed to withstand 50 1.8 m (6') drops to concrete Ratchet stand: Designed to withstand 50 1.2 m
Environmental Sealing IP41
Light Levels 0 to 100,000 lux (9,290 foot-candles)
Ratchet Cycles The ratchet stand shall support 10,000 cycles (each cycle is one full movement of the scanner either
Scan Pattern Area Image (838 x 640 pixel array)
Scan Angle HD Focus: Horizontal 41.4 Degree; Vertical: 32.2 Degree SR Focus: Horizontal: 42.4 Degree; Vertical: 33 Degree ER Focus: Hor
Symbol Contrast 20% minimum reflectance difference
Pitch, Skew 45 Degree, 65 Degree
Decode Capability Reads standard 1D, stacked, 2D and postal symbologies; limited OCR font reading
Warranty 5 year factory warranty


Honeywell Barcode Scanner can read 1d ,2d,QR ,Codes with with higher rading Capability .   Xenon 1900, Honeywell’s sixth-generation of area-imaging technology, is redefining the standard for hand-held scanners. Featuring a custom sensor that is optimized for bar code scanning, Xenon 1900 offers industry-leading performance and reliability for a wide variety of applications that require the versatility of area-imaging technology. Powered by Adaptus® Imaging Technology 6.0, Xenon 1900 delivers superior bar code scanning and digital image capture. Xenon 1900 incorporates a revolutionary decoding architecture that combines Adaptus Imaging Technology 5.5 and Omniplanar’s SwiftDecoder™ software along with a custom sensor, enabling extended depth of field, faster reading, and improved scanning performance on poor quality bar codes. From high density linear to 2D bar codes found directly on the screen of a mobile device, Xenon 1900 decodes virtually all bar codes with ease. A new space-saving design that mounts critical components on a single board eliminates the need for connectors. A more reliable design with fewer components minimizes downtime and improves serviceability, resulting in increased productivity. Its small form factor ensures that the Xenon 1900 fits well in virtually any sized hand, reducing operator fatigue. Built with durability in mind, Xenon 1900 can withstand up to 50 drops to concrete from distances as high as 6 feet. An IP41-rating provides added protection. With a solid-state design backed by a five-year warranty, Xenon 1900 is constructed to deliver years of uninterrupted performance.
